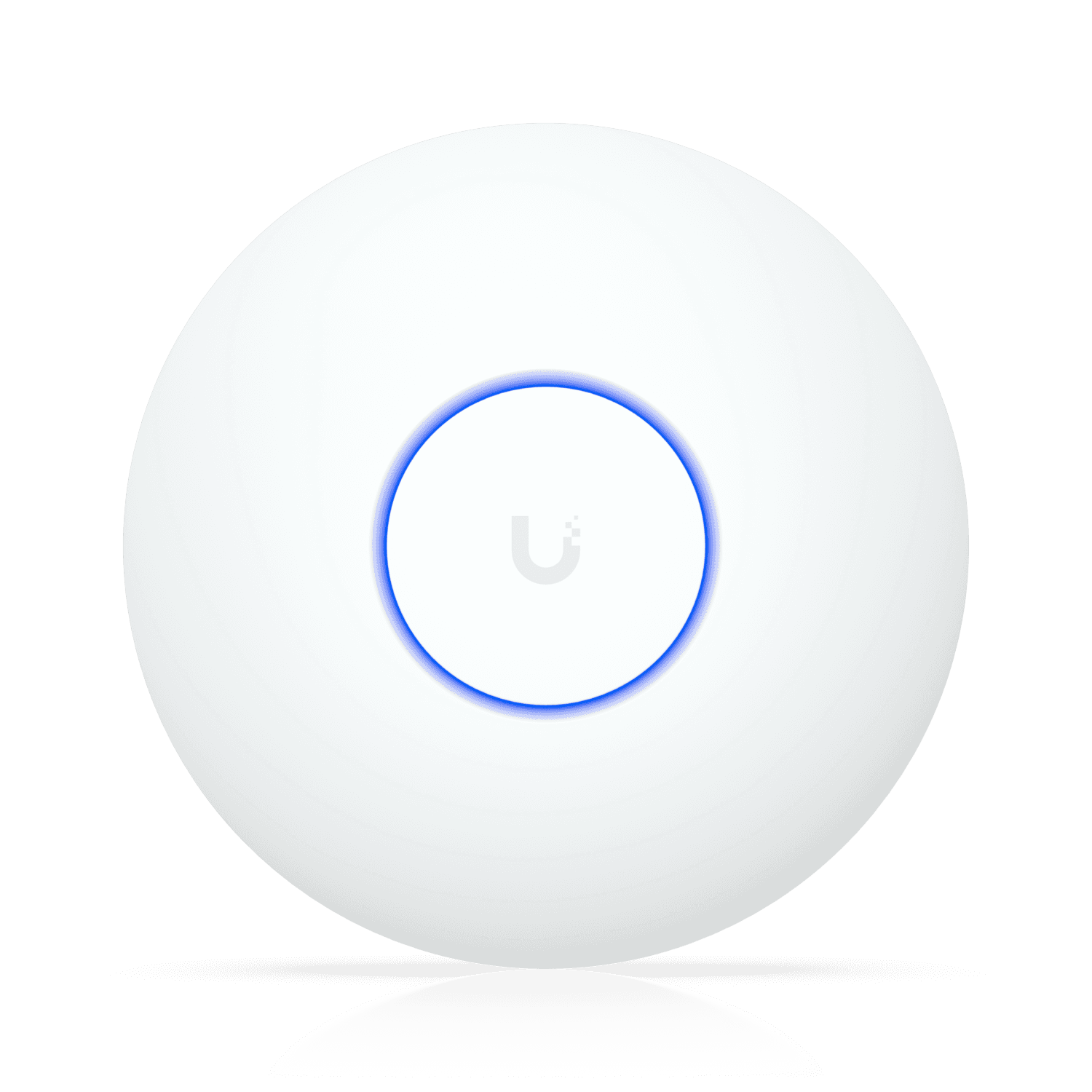

UniFi U7-Lite WiFi 7 2.5Gb Ethernet Access Point

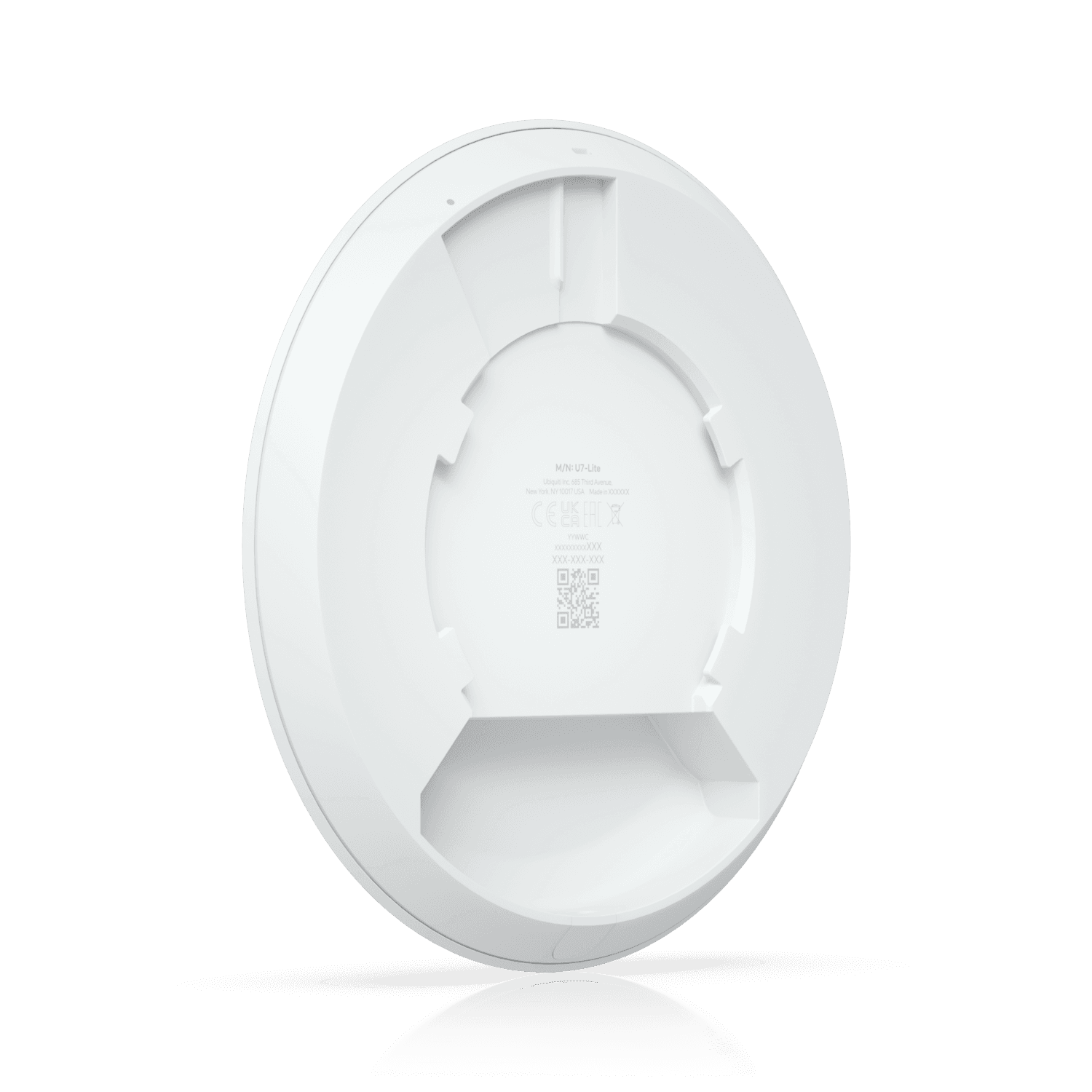

UniFi U7-Lite WiFi 7 2.5Gb Ethernet Access Point - Image 2

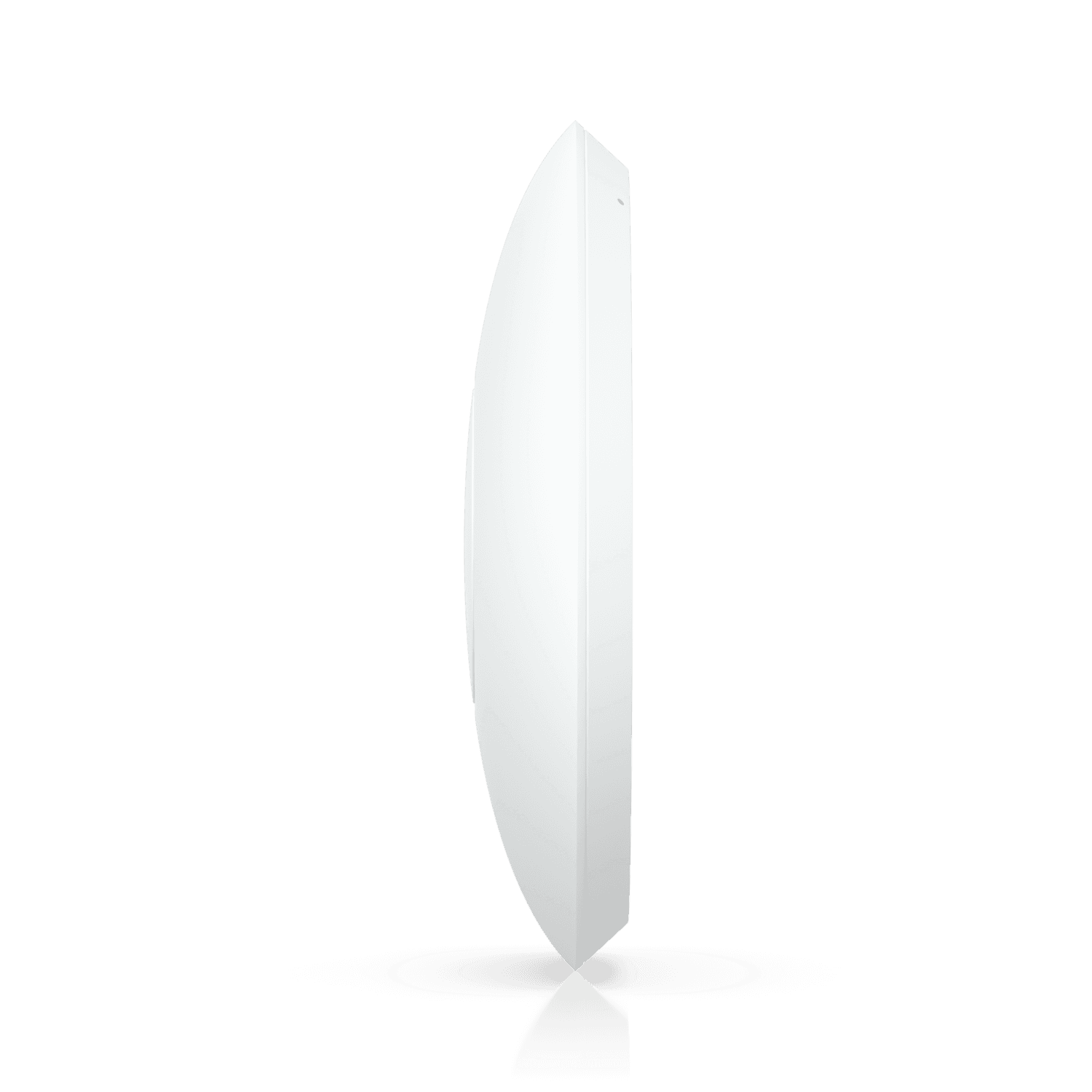

UniFi U7-Lite WiFi 7 2.5Gb Ethernet Access Point - Image 3

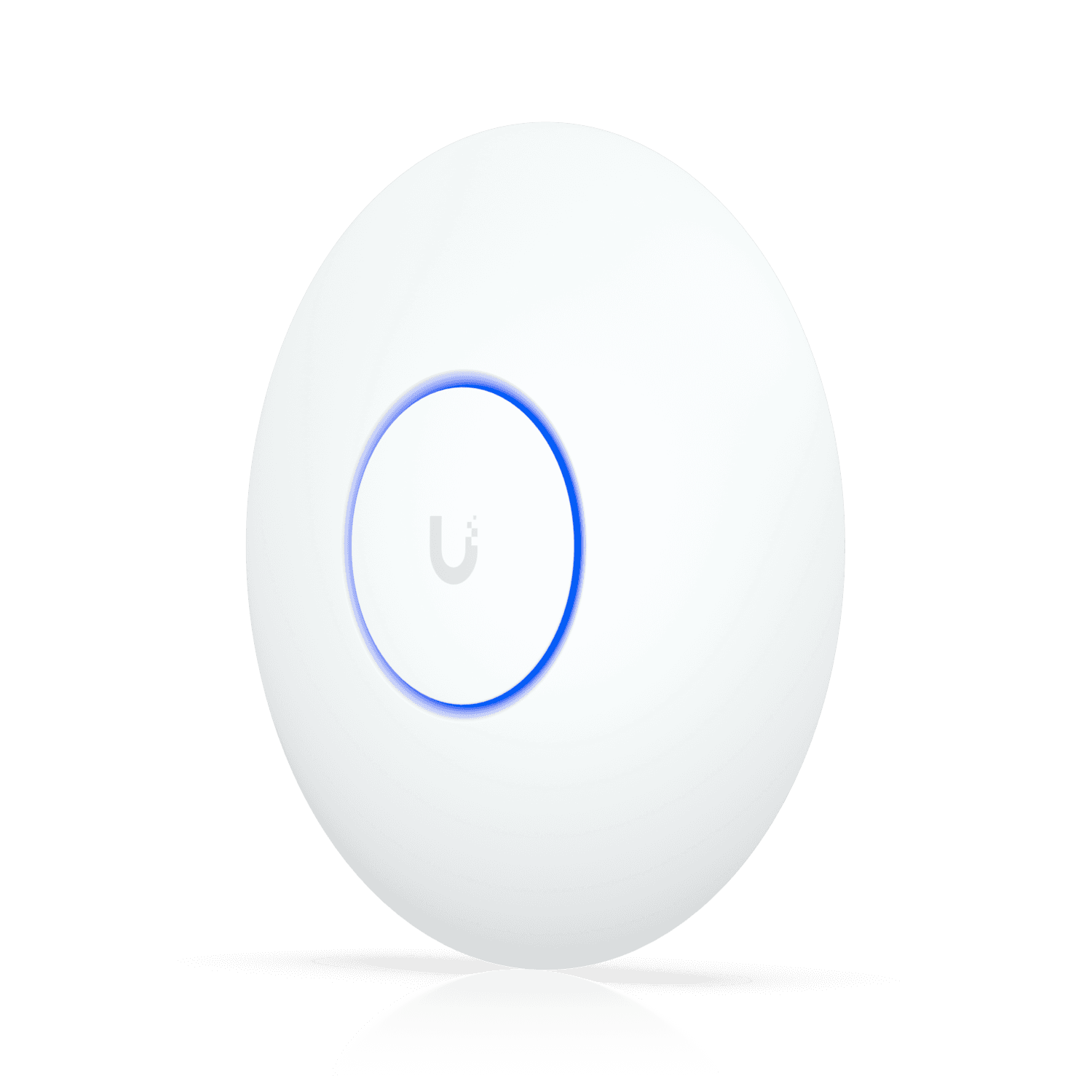

UniFi U7-Lite WiFi 7 2.5Gb Ethernet Access Point - Image 4

UniFi U7-Lite WiFi 7 2.5Gb Ethernet Access Point

  • WiFi 7 Access Point: 4 Spatial Streams with a maximum speed of 4.3Gbps
  • 2.5 Gb Ethernet Ports
  • Wall/Ceiling Mountable
  • Required to power:
    • POE Switch or POE injector (48v 802.3af PoE)
    • Ethernet connection.
  • Required to configure and monitor – Unifi OS (Free download):
    • Available on NuCCTV Smart Home Hub
    • PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
    • Can be sent configured with WiFi credentials however other features such as monitoring and future config changes require own Unifi Controller instance. Please request this at checkout.



General Specifications

Dimensions

  • Ø171.5 x 33 mm (Ø6.8 x 1.3 in.)

WiFi Standard

  • WiFi 7

Spatial Streams

  • 4

Coverage Area

  • 115 m2 (1,250 ft2)

Max. Client Count

  • 200+

Uplink

  • 2.5 GbE

Mounting Locations

  • Ceiling, wall

Mounting Plate

  • Plastic mounting plate (Included)

Power Method

  • PoE

Performance Specifications

MIMO

  • 5 GHz: 2 × 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)

Max. Data Rate

  • 5 GHz: 4.3 Gbps (BW240)
  • 2.4 GHz: 688 Mbps (BW40)

Antenna Gain

  • 5 GHz: 5 dBi
  • 2.4 GHz: 4 dBi

Max. TX Power

  • 5 GHz: 24 dBm
  • 2.4 GHz: 23 dBm

Max. BSSIDs

  • 8 per Radio

Supported Data Rates

  • 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
  • 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Feature Specifications

Wireless Meshing

  • Yes

Band Steering

  • Yes

802.11v BSS Transition Management

  • Yes

802.11r Fast Roaming

  • Yes

802.11k Radio Resource Management (RRM)

  • Yes

Advanced Radio Management

  • Yes

Passpoint (Hotspot 2.0)

  • Yes

Captive Hotspot Portal

  • Custom Branding Landing Page
  • Voucher Authentication
  • Payment-Based Authentication
  • External Portal Server Support
  • Password Authentication
  • Guest Network Isolation

Private Pre-Shared Key (PPSK)

  • Yes

WiFi Speed Limiting

  • Yes

Client Device Isolation

  • Yes

WiFi Schedules

  • Yes

RADIUS over TLS (RadSec)

  • Yes

Dynamic RADIUS-assigned VLAN

  • Yes

Hardware Specifications

Max. Power Consumption

  • 13W

Supported Voltage Range

  • 42.5—57V DC

Networking Interface

  • (1) 2.5 GbE RJ45 port

Weight

  • 313 g (11 oz)

Management

  • Ethernet

Enclosure Material

  • UV-stabilised polycarbonate

Mount Material

  • UV-stabilised polycarbonate, galvanised steel (SGCC)

System LEDs

  • White/Blue

Channel Bandwidth

  • HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

  • CE, FCC, IC

Ambient Operating Temperature

  • -30°C to 40°C (-22°F to 104°F)

Ambient Operating Humidity

  • 5 to 95% non-condensing

Software Specifications

Application Requirements

  • UniFi Network: Version 9.0.114 and later
  • UniFi OS: iOS version 10.20.2 and later, Android version 10.21.7 and later

£115.89
