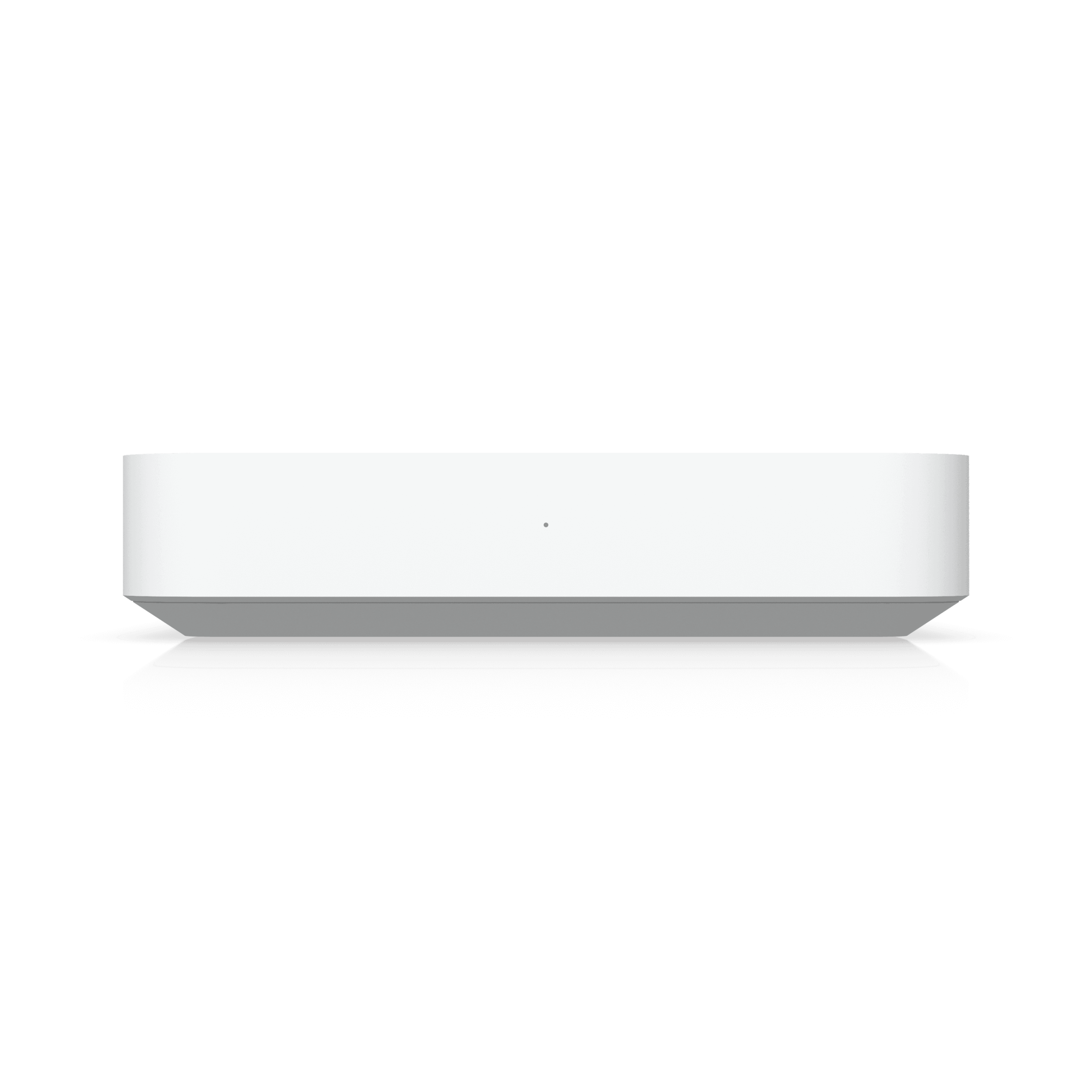

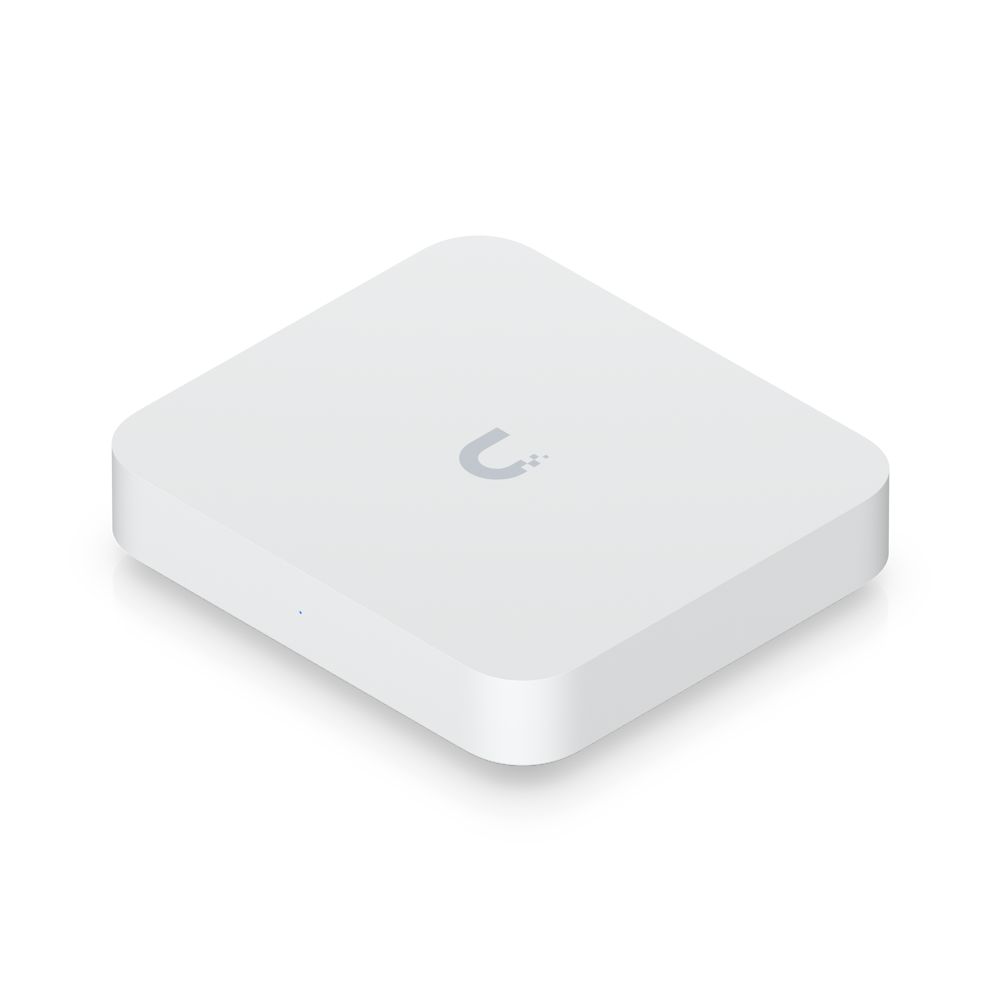

Unifi Gateway Max
Unifi Gateway Max - Image 2
Unifi Gateway Max - Image 3

Unifi Gateway Max

Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server (on NuCCTV)

Up to 2.3 Gbps routing with IDS/IPS

(1) 2.5 GbE WAN port

(4) 2.5 GbE LAN ports, including (1) remappable to WAN

USB-C powered (adapter included)

Managed with UniFi Network 8.1.113 and later

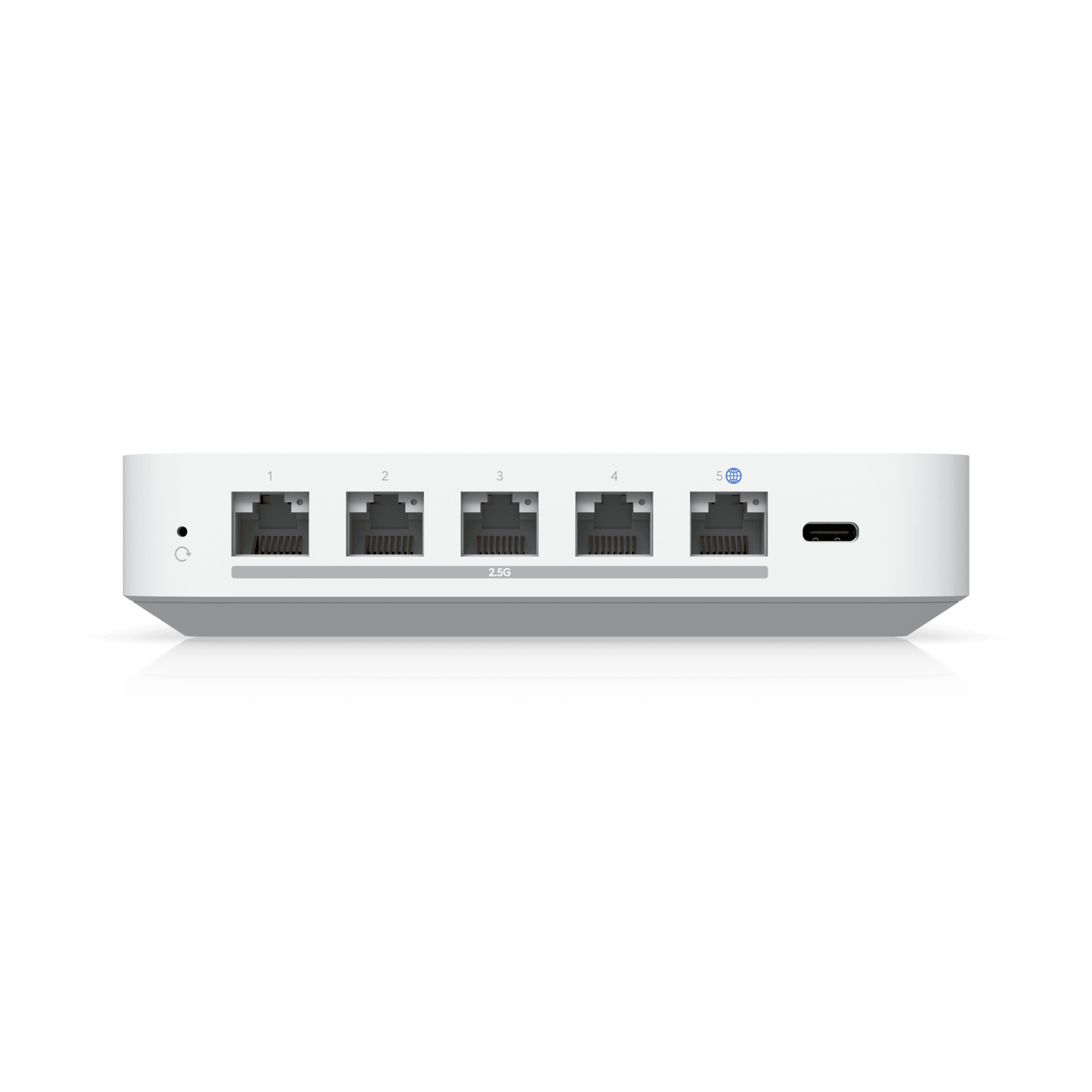

Port Layout:
2.5 GbE RJ45: 5 (2.5G/1G/100M/10M)
IDS/IPS Throughput: 2.3 Gbps
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45
Form Factor: Compact desktop
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)



Security

  • Stateful Firewall
  • Application-Aware Layer 7 Firewall
  • DPI & Traffic Identification
  • Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
  • Content Filtering
  • Intrusion Prevention (IPS/IDS)
  • Ad Blocking
  • IDS/IPS Signatures: 55,000+ With CyberSecure

VPN & SD-WAN

  • License-Free SD-WAN
  • Site-to-Site VPN
    • Site Magic
    • IPsec
    • OpenVPN
  • VPN Server
    • Teleport Zero-Configuration VPN
    • WireGuard
    • OpenVPN
    • L2TP
  • VPN Client
    • WireGuard
    • OpenVPN

Networking

  • Multi-WAN Load Balancing
  • Dynamic Routing
    • OSPF
  • Advanced QoS
  • Multicast DNS (mDNS)
  • Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
  • Integrated RADIUS Server
  • RADIUS over TLS (RadSec)
  • Additional Internet Failover with UniFi LTE Backup
  • Internet Quality and Outage Reporting
  • MAC Address Table Size: 2,000

Hardware

Max. Power Consumption: 9.6W

Power Method: USB type C (5V DC/3A)

Power Supply: USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range: 100—240V AC
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 2 GB
Weight: 520 g (1.1 lb)
Enclosure Material: Polycarbonate
Management: Ethernet Bluetooth
LEDs:
  • Ethernet
  • System
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant
Certifications: CE, FCC, IC

Application Requirements

UniFi Network: Version 8.1.113 and later

£225.00
